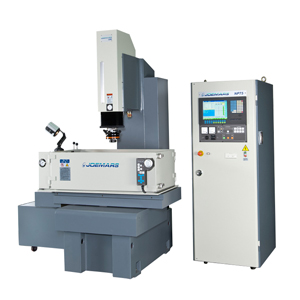

CNC Series JMNC43A+NP75+D43

Developed by a group of top engineers and technicians with rich on ground and theoretical experience in the field of EDM, JMNC43A+NP75+D43 renders superb engineering supremacy and unmatched mechanical features to outstand others.

  • Specs
  • Accessories
  • Features
  • Controls
  • Cut Samples
  • Video
  • Inquiry
MACHINE UNIT & DIELETRIC TANK UNIT
ITEM UNIT JMNC43A+NP75+D43
Work table size mm 650 × 400
X travel mm 400
Y travel mm 300
Z travel mm 350
Ram platen to work table mm 290 ~ 640
Max. electrode weight kgs 75
Max. workpiece weight kgs 800
Work tank ( W × D × H) mm 1080 × 560 × 340
Weight of machine unit kgs 1400
Machine Outside dimensions ( W × D × H ) mm 1480 × 1900 × 2340
Max. Machining Current A 75
Total Power Input KVA 7 / 9 ( with JMNC53P )
Max. Metal Removal Rate mm3 / min 610
Electrode Wear Ratio % 0.20
Best Surface Roughness µm Ra 0.20 ( without powder ) < 0.20 ( without powder )
Net Weight kgs 330
Outside Dimensions ( W × D × H ) mm 680 × 1070 × 1820
Dielectric tank capacity L 320
Dielectric tank pump HP 0.5 HP × 1
Dielectric tank net weight kgs 100
Dielectric tank filter method Paper filter
Dielectric tank outside dimensions ( W × D × H ) mm 850 × 1150 × 1000

* All specification and design are subject to change without notices.
STANDARD ACCESSORIES
Paper filters 1 set
Tool box 1 pc
Flushing nozzle 1 set
Drill chuck 1 pc
Clamping kit 1 set
Electrode holder 1 pc
Halogen machine work lamp 1 pc
Leveling pads 1 set
OPTIONAL ACCESSORIES
Auto fire extinguisher
Permanent magnetic table
Dielectric cooler
Auto Electrode Changer ( For CNC EDM only )
3 or 4 Tools for JMNC32A & JMNC43A
5 Tools for JMNC50 & JMNC53 / JMNC53P
6 Tools for JMNC60 ~ JMNC2210S
C-axis ( For CNC EDM only )
Spare PCB set
FEATURES
Industrial grade PC based CNC controller
12.1” TFT LCD color panel
Dialogue programming or GM code programming
Background editing
User Macro function
Multi language support
Machining path display
MPG positioning and discharging alignment
Multi-holes macro programming: Linear / Circular / Array / Arbitrary Multi-holes
Multi-conditions macro programming for finish machining
1000 machining condition tables with 1000 conditions in each table
17 kinds of Loran & Orbit function
LWF sparking circuit able to control the peak current rising slope, reduce the corner wear
Tracking mode OFF-TIME control circuit to prevent Arcing
All PC boards are sectioned in modular box design, reduce maintenance cost
SOFTWARE SPECIFICATION :
Language : English / Chinese
Unit Inch : system / Metric system
Programming : Dialog programming / G/M code programming / background programming / expert system auto-programming / RS232/ Network
Operation : mode Auto / Manual / Edit / Manual Data Input ( MDI )
Screen function : Expert / Graph / Diagnostic / Alarm / Set
Software panel function : DRN / SBK / BDT / ZLK
Positioning function : Rim Searching / Groove Center Searching / Hole Center Searching / Outer Center Searching / Apex / Sparkle Tooling Correction
Machining function : Orbit Cutting / Cone / Planar Expansion Orbit / Vector Orbit / 3-Dimension Orbit / Machining Along Path / Time Limited Machining / Multi-Hole Macro / Multi-section Finishing / Cutting with C Axis
Offset function : Tool Length / Tool Radius / Gap / Thread
MLC function : I/O Point / C Point / S Point / A Point / Timer / Counter / Temporary Saver / D Temporary Saver / Real-Time Ladder Diagram Display
General function : Multi-Coordinate System / Coordinate System Zoom Scale / Coordinate System Rotation / Graph Rotation / Machining Path Display / User Macro Command / On-Line Instruction
E code number : 1000
AXIS CONTROL :
Basic axis : 3 Axis
Extended axis : 1 ( C axis, optional )
Numbers Of Basic Co-axis : 3 Axis
Number Of Simultaneously Driving Axis : At most 4 Axis
Number Of Hand Wheel's Controllable Axis : 3 Axis ( Optional for C Axis )
SYSTEM SETTING UNIT:
Metric - Minimum Input Unit : 0.001 mm / Minimum Command Value : 0.001 mm / Maximum Stroke Setting : 9999.999 mm
English - Minimum Input Unit : 0.0001 inch / Minimum Command Value : 0.0001 inch / Maximum Stroke Setting : 999.9999 inch
Angle - Minimum Input Unit : 0.001° / Minimum Command Value : 0.001° / Maximum Stroke Setting : 359.999°
G CODE TABLE :
Positioning Function - Function : Rapid Positioning / No-Guard Rapid Positioning / Edge Finding / Groove Center Finding / Hole Center Finding / Outer Center Finding / Apex Finding / Home Origin Finding / Sparkle Tooling Correction / Automatic return to Reference Point / 2nd Reference Point Return
General Machining - Function : 3 Axis Linear Cutting / Clockwise Circular Arc Cutting / Counter-Clockwise Circular Arc Cutting
Orbit Macro Machining - Function : Circular Macro / Square Macro / Vector Macro / Fan-Shaped Macro
Loran Machining - Function : Standard Loran Machining / Loran Pattern Rotation / Plane Setting of Expansion Loran / Angular Loran
Multi-hole Macro Machining - Function : Linear / Circular / Arc / Square / Random Mode of Multi-hole Machining
Time Limited Machining - Function : Cutting Time Setting For Time Limited Machining
Macro - Function : Call Macro Command
Coordinate System Function - Function : Machine Coordinate System / Working Coordinate Systems / Polar Coordinate System Command / Zoom Scale / Coordinate System Rotation / Absolute/Incremental setting / Setting Coordinates of Current Position / Selection of Working Plane / English / Metric Conversion
Compensate Function - Function : Tool Radius Compensation / Tool Length Compensation
C Axis Function - Function : C Axis Home Origin Finding / C Axis Helical Machining / Helical Positioning / C Axis No-Guard Helical Positioning
Other - Function : Dwell / Data Setting / Stored Stroke Check Function
Pumping Mode - Function : Pumping Along Current Machining Axis / Pumping Upward Along Z Axis / Pumping Along Machining Path / Pumping to the center and then Along Current Machining Axis / 45°back to the Center and then Along Current Machining Axis
